Penguin Pediatric Nebulizer
Drive Medical mq6002r Penguin Pediatric Nebulizer with Carry Bag, and Reusable and Disposable Neb Kit. AIRIAL Pediatric Compressor Nebulizer Systems are designed to stimulate the child’s imagination, which helps to eliminate stress and anxiety durin
- Child friendly design
- Comes with disposable neb kit, pediatric mask, tubing, and a carry bag
- Durable, piston driven system
Demonstration Videos
SPECIFICATIONS – Other Information
Drive Medical
Penguin Pediatric Nebulizer
w/ Disposable Neb Kit
SKU: DNEBPEG
Manufacturer: drive
Product Type: nebulizers
DESCRIPTION
Description of the Medquip Nebulizer NEBULIZER
Drive Medical mq6002r Penguin Pediatric Nebulizer with Carry Bag, and Reusable and Disposable Neb Kit. AIRIAL Pediatric Compressor Nebulizer Systems are designed to stimulate the child’s imagination, which helps to eliminate stress and anxiety during patients’ treatments.
These durable, quiet, piston-driven systems come complete with a patient administration set and aerosol mask. Pedi-Neb pacifiers sold separately.
Durable and quiet piston driven system
Child friendly design
Comes with kink-resistant tubing, pediatric mask, and six air filters
Actual Product Weight: 3.25 lbs
Liter Flow: 5-8 LPM
Maximum Pressure: 42 psi
Operating Pressure: 8-13 PSI
Operating Relative Humidity: 10-95 Percent
Operating Temperature: 50 to 104 deg F
Overall Product Height: 4.78″
Overall Product Length: 7.7″
Overall Product Width: 6.31″
Particle Size: 0.5-10 microns
Power Requirements: 120V 50-60Hz
Primary Product Color: Black
Primary Product Material: Plastic
Storage Temperature: -4 to 158 deg F
Volume: 5 ml
Warranty: 5 Year Limited
With one of the largest catalogs of medical, surgical and diagnostic supplies available online, Medex Supply can accommodate your facility’s needs for Respiratory.
Nebulizers can be found in our extensive online collection of products from globally recognized and trusted brands, including Medquip. An excellent option to consider is the Nebulizer.
| Particulars | Specifications |
| Power | AC 120V, 60Hz |
| Current | 1.5 A / 0.8 A |
| Medication Capacity | 5ml |
| Particle Size | 0.5 to 10µm |
| MMAD | 4 µm |
| Sound Level | Around 60 dBA |
| Maximum Medication capacity | 13ml (cc) |
| Average Nebulization Rate | 0.2ml/min |
| Compress or Pressure Range | 25 to 42 Psi |
| Operating Pressure Range | 8 to 13 Psi |
| Liter Flow Range | 5 ~ 8 lpm |
| Operating Temperature Range | 10°C to 40°C (50°F to 104°F) |
| Operating Humidity Range | 10 to 95% RH |
| Storage Temperature Range | -20°C to 70°C (-4°F to 158°F) |
| Storage Humidity Range | 10 to 95 % R H |
| Dimension (L x W x H) | 188. 0 × 169. 5 × 136.5mm |
| Noise level | 55 dBA |
USER MANUAL
FREQUENTLY ASKED QUESTIONS
Helpful Hints
Drive Airial Penguin Compressor Nebulizer
Includes:
- Compressor Nebulizer Comes with
– Disposable neb kit
– Pediatric mask
– Tubing
– Carry bag - Disposable and Reusable Kit comes with:
– 7 feet tubing
– T adaptor
– Nebulizer or medication cup
– Reservoir tube

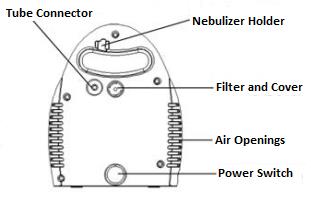

Parts Description:
What are Compressor Nebulizer Systems Used For?
People suffering with breathing problems, such as Asthma, Chronic Obstructive Pulmonary Disease (COPD) or Cystic Fibrosis are often prescribed medicines that minimize or control the symptoms of their disease. Compressor Nebulizer System is a means of delivering these prescribed medications to the lungs of the patients. Medications and compressor nebulizer systems should be used as directed by physician to maximize the benefits.
Working Of Compressor Nebulizer:
Most medicines that come in use with a compressor nebulizer system are created in a liquid form. This liquid medication is placed in the nebulizer cup. Compressor is connected to the nebulizer by flexible tubing and generates a specific pressure and flow of air that essentially “drives” the nebulizer. The pressurized air produced by the compressor initiates the ability of Nebulizer to break down the liquid medication into a very fine mist. This mist, often known as an aerosol cloud, is then propelled out of the nebulizer and inhaled into the lungs where the medicine is readily absorbed.
Also Available (Separately) :
More On Drive Penguin Compressor Nebulizer
How to Operate Your Compressor?
- Before each use inspect the Drive Airial Compressor and nebulizer cup assembly for damage or wear, replace as needed.
- Place the Compressor on a table or other flat stable surface. Be sure you can easily reach the controls when seated. Do not use this device on the floor.
- With the power switch in the O (OFF) position, plug the power cord into an appropriate electrical wall outlet.
- Connect one end of the tubing to the compressor air-outlet connector.
- Assemble the nebulizer cup and add indicated medication to the nebulizer cup before use.
- Attach the other end of the tubing into the air-inlet connector found at the bottom of the nebulizer cup.
- Turn on the Compressor by pressing the power switch to the I (ON) position and begin treatment.
- If treatment needs to be interrupted, simply press power switch to O (OFF) position.
- When the treatment is complete, turn off the compressor by pressing the power switch to O (OFF) position and unplug the unit from the electrical outlet.
- Always unplug this device immediately after use.
Operating Cautions:
- Connect this product to an appropriate voltage outlet for your model.
- Do not run this product unattended.
- Never operate the unit if it has any damaged parts (including power cord), or if it has been dropped or submersed in water. Promptly send it to a service center for examination and repair.
- If any abnormality occurs, discontinue use immediately until the unit has been examined and repaired.
- Always unplug the product immediately after use.
- Never block the air openings of the main unit or place it where the air openings may be obstructed.
- Click Here for Instruction Guide
Nebulizer Cleaning:
- With power switch in the “Off” position, unplug power cord from wall outlet.
- Disconnect tubing from the air-inlet connector and set aside.
- Disassemble mouthpiece or mask from cap. Open nebulizer by turning cap counterclockwise and remove baffle.
- Wash all items, except tubing, in a hot water/dishwashing detergent solution. Rinse under hot tap water for 30 seconds to remove detergent residue. Allow to air dry.
- For reusable nebulizer only, it can be cleaned daily in dishwasher using top shelf or by following the above cleaning procedure.
Drive Airial Penguin Pediatric Compressor Nebulizer has a very child friendly design, operates with a low noise level and is very easy to use. This durable, high power, piston driven Compressor Nebulizer System delivers all types of medication quickly and effectively into the respiratory system of child. Drive Airial Penguin System includes an AC powered air compressor that provides a source of compressed air for home health care use. Compressor is used in conjunction with a jet nebulizer to convert certain inhalable drugs into an aerosol form for easy inhalation by a patient.
